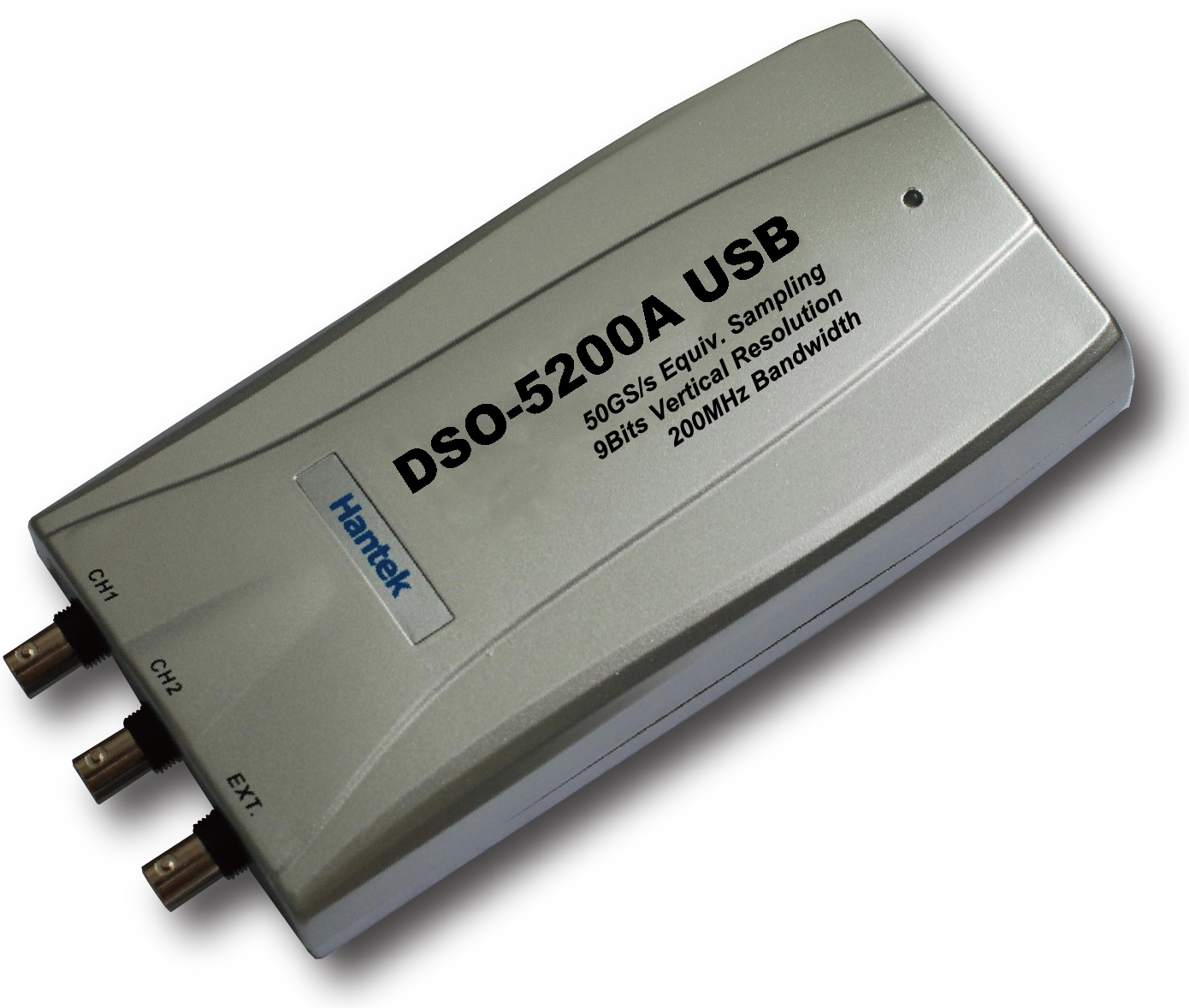

DSO2000 Series
200MHz bandwidth, 50GSa/s sampling
OneDrive Download
-
USB2.0 interface, no external power source required, easy to use.
-
be suitable for notebook computer，product line maintenance，be used easily on business.
-
Dimensions (mm):190(L) x100(W) x35(H), be carried easily.
-
High performance,250MS/s real-time sampling, 200MHz Bandwidth.
-
Operating System: Windows7,Windows Me, Windows NT, Windows 2000, Windows XP ,VISTA,Win8
-
23 measurement functions, PASS/FAIL Check, be suitable for technical application.
-
Waveform average, persistence, intensity, invert, addition, subtraction, multiplication, division, X-Y plot.
-
Save waveform in the following: text file, jpg/bmp graphic file, MS excel/word file.
-
FFT
-
One computer can connect many DSO, extend channel easily.
-
Labview\VB\VC\Delphi\C++Builder Second Design instance.
|
Model
|
DSO2090
|
DSO2150
|
DSO2250
|
DSO5200
|
DSO5200A
|
|
Channel
|
2
|
2
|
2
|
2
|
2
|
|
Bandwidth
|
40MHz
|
60MHz
|
100MHz
|
200MHz
|
200MHz
|
|
Max. Sample rate
|
100MS/s
|
150MS/s
|
250MS/s
|
200MS/s
|
250MS/s
|
|
Rising Time
|
8.8ns
|
5.8ns
|
3.5ns
|
1.7ns
|
1.7ns
|
|
Impedance
|
1MΩ
25pF
|
|
Coupling
|
AC/DC/GND
|
|
Vertical resolution
|
8Bit
|
9 Bit
|
|
Gain range
|
10mV-10V,
10Steps
|
|
DC accuracy
|
±3%
|
|
Timebase range
|
2ns-1h,
39 Steps
|
|
Vertical adjustable
|
Yes
|
|
Input protection
|
Diode clamping
|
|
X-Y
|
Yes
|
|
EXT. input
|
Yes
|
|
Trigger Mode
|
Auto,
Normal and Single
|
|
Trigger Slope
|
+/-
|
|
Trigger level adjustable
|
Yes
|
|
Trigger Type
|
Rising
edge, falling edge
|
|
Trigger Source
|
CH1,
CH2, EXT
|
|
Pre/Post trigger
|
0-100%
|
|
Buffer size
|
64K
|
64K
|
1M
|
64K
|
1M
|
|
Sampling selection
|
Yes
|
|
Waveform Display
|
port/line,
waveform average, persistence, intensity
|
|
Network
|
Open/Close
|
|
Vertical mode
|
CH1,
CH2, Dual, ADD
|
|
Cursor measurement
|
Yes
|
|
Math
|
FFT,
addition, subtraction, multiplication, division.
|
|
Cursor
|
Frequency,
Voltage
|
|
Accessories
|
S/W
CD, probes, manual, USB cord
|
