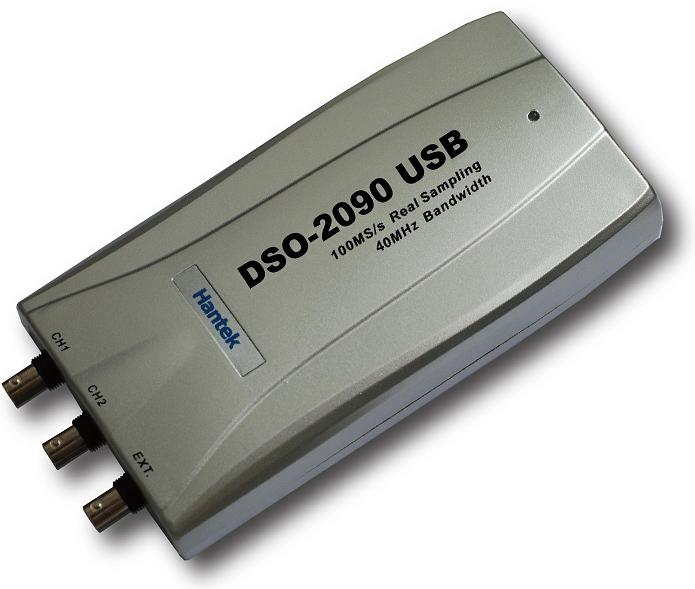

Current Location:Home > Product Details>DSO2090Product Details


100MS/s, 40MHz bandwidth

1. Characteristic

USB2.0 interface, no external power source required, easy to use.

be suitable for notebook computer,product line maintenance,be used easily on business.

Dimensions (mm):190(L) x100(W) x35(H), be carried easily.

High performance, 100MS/s real-time sampling, 40MHz Bandwidth.

Operating System: Windows7,Windows Me, Windows NT, Windows 2000, Windows XP ,VISTA

23 measurement functions, PASS/FAIL Check, be suitable for technical application.

Waveform average, persistence, intensity, invert, addition, subtraction, multiplication, division, X-Y plot.

Save waveform in the following: text file, jpg/bmp graphic file, MS excel/word file.


One computer can connect many DSO, extend channel easily.

Labview\VB\VC\Delphi\C++Builder Second Design instance.

2. Hardware Specification

2 Channels
Bandwidth 40MHz
Impedance 1MΩ 25pF
Max. Sample rate 100MS/s
Coupling AC/DC/GND
Vertical resolution 8Bit
Gain range 10mV-5V, 9Steps
DC accuracy ±3%
Timebase range 4ns-1h, 38 Steps
Vertical adjustable Yes
Input protection Diode clamping
X-Y Yes
Autoset Yes (30Hz to 40MHz)
EXT. input Yes
Trigger Mode Auto, Normal and Single
Trigger Slope +/-
Trigger level adjustable Yes
Trigger Type Rising edge, falling edge
Trigger Source CH1, CH2, EXT
Pre/Post trigger 0-100%
Buffer size 10K-32KB/Channel
Sampling selection Yes
Waveform Display port/line, waveform average, persistence, intensity
Network Open/Close
Vertical mode CH1, CH2, Dual, ADD
Cursor measurement Yes
Math FFT, addition, subtraction, multiplication, division.
Cursor Frequency, Voltage
Data Samples 10K-32K/Channel
Accessories S/W CD, probes, manual, USB cord


Operating system: Windows 7, Windows Me, Windows NT, Windows 2000,Windows XP, VISTA.


    Supply DEMO code (VC、CVI、VB、LABVIEW) and technical support.
