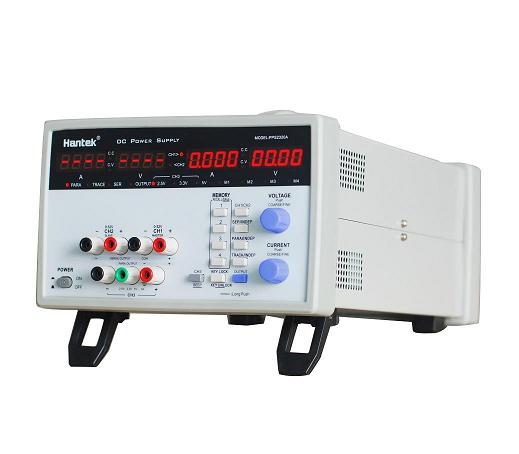

PPS2320A
Wide voltage and current work scope; Higher precision; With constant pressure and constant flow model; Provides the output or internal switch, and has the preset parameters 16 groups; Convenient and quick.
This programmable DC power has a wide voltage and current work scope, higher precision, with constant pressure and flow model, provides the output or internal switch, and has the preset parameters 16 groups, convenient and quick.
*Low ripple, low excursion.
*High resolution, 10mV, 1mA.
*With inner auto-serial or parallel function.
*Convenient software calibration.
*High-stability, low-drift.
*OVP, OCP and OTP to protect power supply.
*The intelligence temperature-control fan noise is low/
| Model | PPS2320A | |
| Output | ||
| Channel | CH1&CH2 | CH3 |
| Voltage | 0-32V | 2.5V/3.3V/5V |
| Current | 0-2A,3A,5A | 0-3A |
| Constant voltage |
|
|
| Effect |
Source Effect:≦0.01%+3mV; Load Effect: ≦0.01%+3mV(Setting current≦3A); ≦0.02%+5mV setting current >3A) |
Source
Effect ≦5mV; Load Effect ≦40mV |
| Gain Ripple and noise | ≦5mVrms(5Hz-1MHz) | ≦5mVrms |
| Reaction time | Rise time ≦50ms(on load to full load) fall time:≦250mS(fall load to no load | |
| Output range | 0 to 32V Output voltage range set can be adjusted continuously | |
| Constant current | ||
| Effect |
Source effect:≦0.2%+3mA; Load effect: ≦0.2%+3mA |
|
| Ripple | ≦3mArms | |
| Output range | 0 to the max output can be adjusted continuously | |
| Tracking | ||
| Parallel |
Source effect:≦0.01%+3mV; Load effect:≦0.01%+5mV(setting current≦3A)；≦0.02%+5mV(setting current>3A) |
|
| Series |
Source effect:≦0.01%+5mV; Load effect:≦300mV; Tracking error: ≦0.5%±30mV |
|
| Display | ||
| display | 4 digital display,red/green | |
| Resolution |
Voltage:10mV(0-32V): Current:1mA(Less than 10mA current shows are for reference only |
|
| Programming precision(25±5℃) | Voltage:≦±(read values 0.5% + 2bit); Current:≦±(read values 0.5% + 2bit) | |
| Read accuracy(25±5℃) | Voltage:≦±(read values 0.5% + 2bit); Current:≦±(read values 0.5% + 3bit) | |
| Function | ||
| Panel lock | Yes | |
| Storage/out of | 10groups | |
| General Features | ||
| Power | AC100V/120V/220V/240V ±10%,50/60Hz(optional) | |
| Size | 340(l)* 215(w)* 140mm(h),6.9Kg | |
| Accessories | Output line: 3pcs, product instructions: 1pc, power cord: 1pc | |

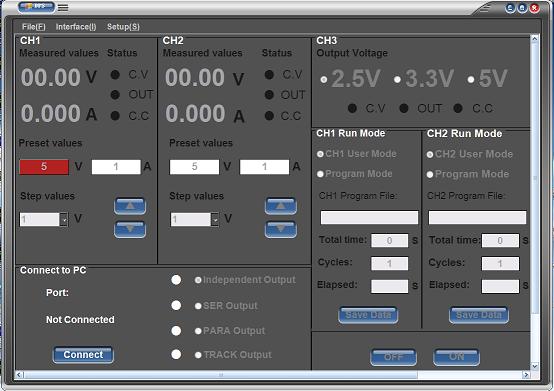

| Matching | USB interface, Communication software | |
|
||
|
|
|
| Number | Attachments Title | Operating |
|---|---|---|
| 1 | PPS2320A Software | Download |
| 2 | PPS2320A Driver | Download |
| 3 | PPS2320A Manual | Download |
| 4 | PPS2320A SDK | Download |
