DSO5000BM Series

Bandwidth: 60-200MHz;
1GSa/s Real Time Sample Rate;
Large (7.0-inch) color display,WVGA(800x480);
Record length up to 2M;
Multiple automatic measurements;
Trigger mode: edge/pulse width/line selectable video/slop/overtime etc.

OneDrive Download

Feature:

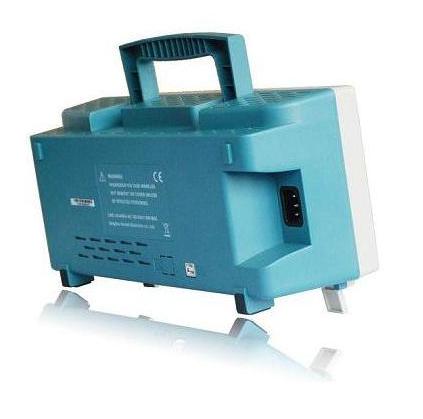

Function Picture:

This device is running Linux 2.6, for more detail see

Model	DSO5202BM	DSO5102BM	DSO5062BM
Bandwidth	200MHz	100MHz	60MHz
Channel	2
Real-Time Sample Rate	1GSa/s
Equivalent Sample Rate	25GSa/s
Memory Depth	2M
Rise Time	1.7ns/3.5ns/5.8ns
Time Base Accuracy	±50ppm
Time Base Range	2ns/div-40s/div
Input Impendance	1MΩ
VOLTS/DIV Range	2mV/div～5V/div
A/D Converter	8 bit
Position Range	±50V(5V/div), ±40V(2V/div～500mV/div), ±2V(200mV/div～50mV/div), ±400mV(20mV/div～2mV/div)
DC Gain Accuracy	±3% for Normal or Average acquisition mode, 5V/div to 10mV/div; ±4% for Normal or Average acquisition mode, 5mV/div to 2mV/div
Bandwidth Limit	20MHz
Trigger Types	Edge, Video, Pulse, Slope, Over time, Alternative
Trigger Source	CH1, CH2, EXT, EXT/5, AC Line
Math	+,-,x,÷,FFT
Cursor Measurement	Voltage difference between cursors: △V; Time difference between cursors: △T; Reciprocal of △T in Hertz (1/ΔT);
Auto Measuerment	Frequency, Period, Mean, Pk-Pk, Cycli RMS, Minimum, Maximum, Rise time, Fall Time, +Pulse Width, -Pulse Width, Delay1-2Rise, Delay1-2Fall, +Duty, -Duty, Vbase, Vtop, Vmid, Vamp, Overshoot, Preshoot, Preiod Mean, Preiod RMS, FOVShoot, RPREShoot, BWIDTH, FRF
Display	7" TFT 16K Color LCD, 800*480 dots
Size	313mm x 108mm x 142mm
Weight	2.08KG
Standard Probe	PP200x2	PP150X2	PP80X2
Detailed technical index please refer to "DSO5000B Series Datasheet"

Model	Bandwidth	Channels	Sampling rate	Other

MSO5000D Series	200/100/60MHz	2CH+16CH(LA)+EXT	1GSa/s(Analog) 500MSa/s(LA)	7powerful trigger function, 1M Record Length, USB interface system upgrade, 16CH Logic Analyzer, 7'' LCD WVGA 800*480; VGA Optional
DSO5000P Series	200/100/70MHz	2CH + EXT	1GSa/s	40K Record Length, USB interface system upgrade, 7'' LCD WVGA 800*480, Powerful trigger function; VGA Optional
DSO5000B Series	200/100/60MHz	2CH+EXT	1GSa/s	1M Record Length, USB interface system upgrade, 7'' LCD WVGA 800*480, 7powerful trigger function; VGA Optional
DSO5000BM Series	200/100/60MHz	2CH+EXT	1GSa/s	2M Record Length, USB interface system upgrade, 7'' LCD WVGA 800*480 7powerful trigger function; VGA Optional
DSO5000BMV Series	200/100/60MHz	2CH+EXT	1GSa/s	2M Record Length, Video Help function; Built in 4G SD Card 7'' LCD WVGA 800*480 7powerful trigger function, USB interface system upgrade; VGA Optional
MSO5074F(G)	70MHz	8CH(LA)+4CH+ 12bit Pattern Generator	1GSa/s(Analog) 500MSa/s (LA)	DSO/LA/AWG/ Pattern Generator 1M Record Length, 16CH Logic Analyzer, USB interface system upgrade 7'' LCD WVGA 800*480 powerful trigger function;

【Tip: Up to 4 models can compare】
