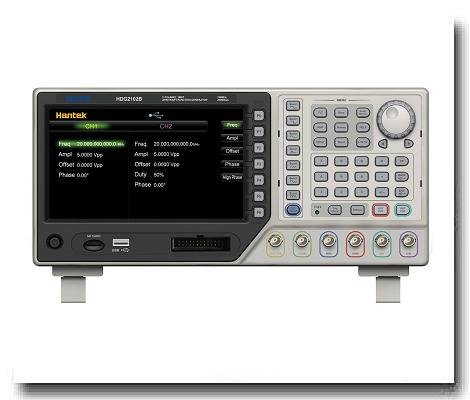

HDG2000C Series

HDG2000C Series

16Bit Resolution, 250MSa/s Sample Rate;
64M Memory Depth; Isoluted Channels;
16 channels digital output;
7 inch 64K true color TFT display, WVGA(800X480)

  • 16Bit Resolution, 250MSa/s Sample Rate; 64M Memory Depth
  • Isoluted Channels;
  • 100/80/60/30/20/10MHz or 5MHz Max. Sine Output Frenquency;
  • 16 channels digital output, together with the analog channel can rebuild the more mixed signals in daily practice
  • Support AM, FM, PM, ASK, FSK, PSK and PWM modulations
  • TCXO timebase standard, OCXO optional for ultra-high stability
  • 7 inch, 64K true color TFT display, WVGA(800X480)

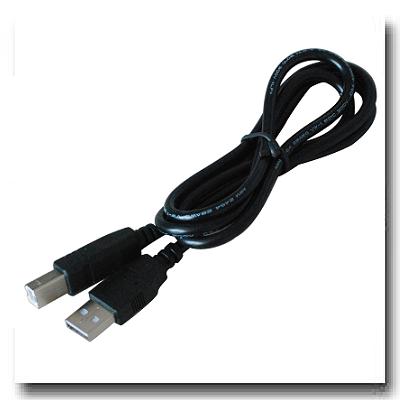

  • Plenty of interfaces: USB Host, USB Device, LAN Optional
Model HDG2102C HDG2072C HDG2052C HDG2032C
Main Features
Waveform Length 64M Point 64M Point 64M Point 64M Point
Bandwidth 100MHz 70MHz 50MHz 30MHz
Frequency 1uHz– 100MHz 1uHz – 70MHz 1uHz – 50MHz 1uHz – 30MHz
Sample Rate 250MSa/s
Voltage resolution 16Bit
SD Card 2GB
Digital Output Mode 16Channels
Isolation Between the Channel and GND
Frequency Characteristics
Waveform Sine, Square, Ramp, Pulse, Noise, Sinc, Exponential Fall, ECG, Gauss, Haver Sine, Lorentz, Dual-Tone, DC
Sine  1uHz– 100MHz 1uHz – 70MHz 1uHz – 50MHz 1uHz – 30MHz
Square  1uHz – 40MHz 1uHz – 35MHz 1uHz – 30MHz 1uHz – 25MHz
Pluse 1uHz – 30MHz 1uHz – 25MHz 1uHz – 20MHz 1uHz – 15MHz
Ramp 1uHz – 4MHz 1uHz – 3MHz 1uHz – 2MHz 1uHz – 1MHz
White Noise 80MHz 60MHz 60MHz 60MHz
Harmonic 1uHz – 30MHz 1uHz –25MHz 1uHz – 20MHz 1uHz – 15MHz
Arb. Waveform 1uHz – 30MHz 1uHz – 25MHz 1uHz – 20MHz 1uHz – 15MHz
Resolutin 1uHz
Accuracy ±2ppm， 18℃~28℃
Sine Wave Spectrum Purity
Harmonic Distortion Typical（0dBm）DC-1MHz: <-60dBc; 1MHz-10MHz: <-55dBc;
10MHz-100MHz: <-50dBc
Total Harmonic Distortion <0.1% (10Hz-20kHz, 0dBm)
Spurious signal(non-hormonic) Typical(0dBm): ≤10MHz: <-65dBc;
>10MHz <-65dBc+6dB/spectrum phase
Phase Noise Typical(0dBm,10kHz offset,) 10MHz:  ≤-115dBc/Hz
Square
Rise /Fall time <10ns  <12ns <12ns <14ns
Overshoot Typical Value（100KHz, 1Vpp）<3%
Duty Cycle ≤10MHz:  20.0%~80.0%;
10MHz-40MHz: 40.0%~60.0% ;
>40MHz: 50.0%（fixed）
Non-symmetry 1% of period+5ns
Jitter（rms） Typical（1MHz,1Vpp, 50Ω）
≤5MHz 2ppm+500ps
> 5MHz 500ps
Ramp
Linearity ≤1%（Typical, 1kHz, 1VPP, Symmetry 100%）
Symmetry 0% - 100%
Pulse
Period 40ns – 1000000s 50ns – 1000000s 60ns – 1000000s 70ns – 1000000s
Pulse  ≥12ns  ≥14ns ≥16ns ≥18ns
Leading/Trailing Edge Time ≥8ns ≥9ns ≥10ns ≥11ns
Overshoot Typical（1Vpp）<3%
Jitter（rms） Typical（1MHz, 1Vpp, 50Ω）
≤5MHz 2ppm+500ps
> 5MHz 500ps
Arb. Waveform
Waveform Length 64M Point
Vertical Resolution 16Bit
Sample Rate 250MSa/s
Rise/Fall time Typical(1Vpp):<6ns
Jitter Typical（1MHz, 1Vpp, 50Ω）
≤5MHz 2ppm+500ps;
> 5MHz 500ps
Amplitude characteristic
Amplitude  Range ≤20MHz:1mVpp—20Vpp; ≤60MHz:1mVpp—15Vpp; ≤80MHz:1mVpp—10Vpp;
 ≤90MHz:1mVpp—5Vpp; ≤100MHz:1mVpp—2Vpp
Accuracy Typical（1kHz Sine, 0V deviation, >10mVpp, Auto); ±1% of setting ±2mVpp
Amplitude Flatness(relative to 100kHz, 1Vpp Sine wave)  ≤10MHz:±0.1dB ≤60MHz:±0.2dB ≤100MHz:±0.4dB
Units Vpp
Resolution 1mv or 4 digits
Isolation <-80dB
Impedance 50Ω(Typical)
Offset Characteristic
Range |Voffset| < Vmax – Vpp/2
Accuracy ±(1% of setting + 5mV + 0.5% of amplitude）
Modulation Characteristic
Modulation Type AM FM PM 2ASK 2FSK 2PSK PWM
AM
Carrier Waveforms  Sine, Square, Ramp, Arb. (except DC)
Source Internal/External
Modulating Waveforms Sine, Square, Ramp, Noise, Arb
Frequency 1Hz—500KHz
Depth 0% -- 120%
FM
Carrier Waveforms Sine, Square, Ramp, Arb. (except DC)
Source Internal/External
Modulating Waveforms Sine, Square, Ramp, Noise, Arb
Frequency 1Hz—500KHz
Frequency Deviation 0—360
PM
Carrier Waveforms  Sine, Square, Ramp, Arb. (except DC)
PM Source Internal/External
PM Modulating Waveforms Sine, Square, Ramp, Noise, Arb
PM Frequency 1Hz—500KHz
PM Phase Deviation 0°~360°
2ASK



Carrier Waveforms Sine, Square, Ramp, Arb. (except DC)
Source Internal/External
Modulating Waveforms Square of 50% duty cycle
2ASK Code Rate 1Hz—500KHz
2FSK
Carrier Waveforms Sine, Square, Ramp, Arb. (except DC)
Source Internal/External
Modulating Waveforms Square of 50% duty cycle
Code Rate 1Hz—500KHz
2PSK
2PSK Carrier Waveforms Sine, Square, Ramp, Arb. (except DC)
2PSK Source Internal/External
2PSK Modulating Waveforms Square of 50% duty cycle
2PSK Code Rate 1Hz—500KHz
PWM
PWM Carrier Waveforms Sine, Square, Ramp, Arb. (except DC)
PWM Source Internal/External
PWM Modulating Waveforms Sine, Square, Ramp, Noise, Arb.
PWM Frequency 1Hz—500KHz
PWM Width Deviation 0% to 100% of Pulse Width
Burst Characteristic
Burst Count 2000000000
Gated Source External trigger
Trigger Source Internal, External or Manual
Sweep Characteristics
Direction Up
Type linear
Sweep time 280000s
Hold/Return time 280000s
Trigger Source Internal, External, Manual
Mark Falling Edge of Sync signal(programmable)
General Specifications
Interface USB host, USB Device，SD Card
Display 7’’ 64K Color TFT Display, 800*480 resolution.
Power Voltage 100-120VACRMS(±10%), 45Hz to 440Hz, CATⅡ;
120-240VACRMS(±10%), 45Hz to 66Hz, CATⅡ
Power Consumption <60W
Weight 3Kg
