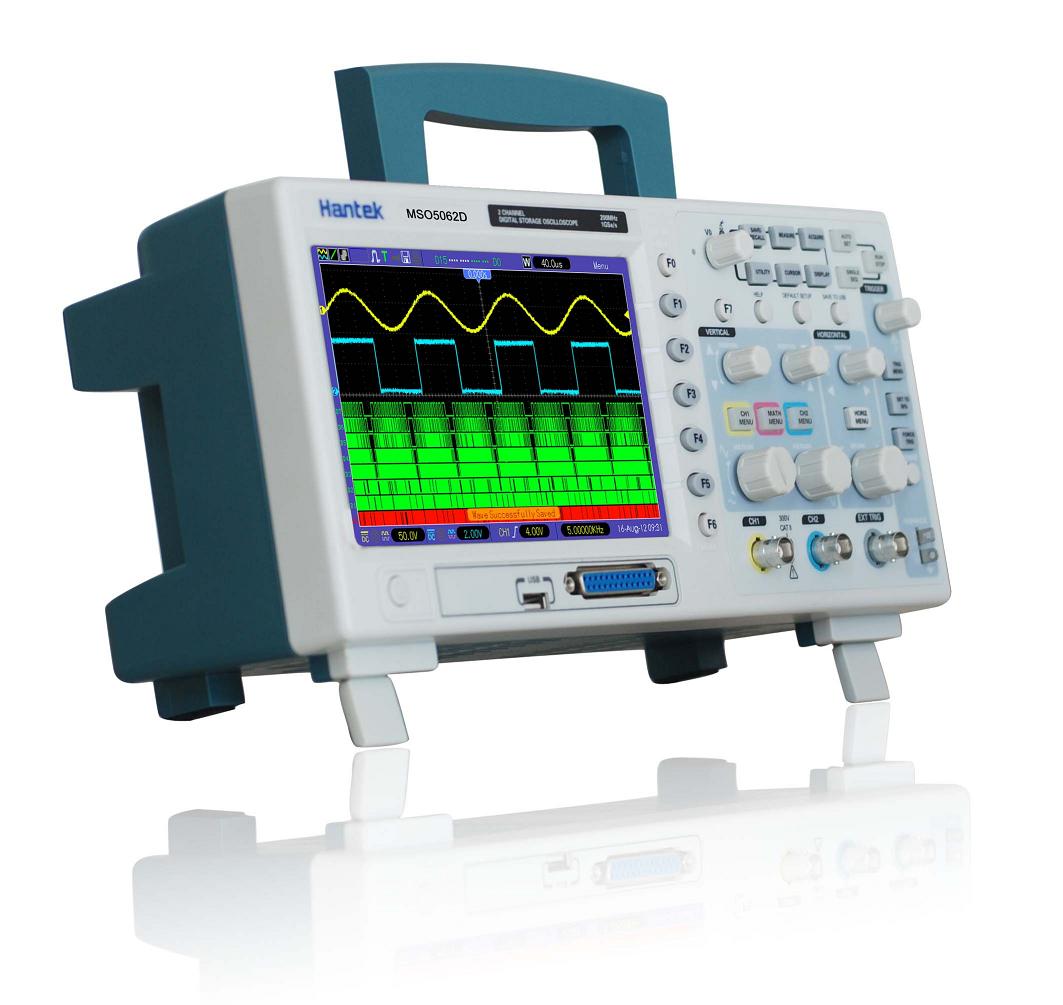

Mixed Signal Oscilloscope; 60MHz Bandwidth; 1GSa/s Real Time Sample Rate;1MRecord Length; Large (7.0-inch) color display,WVGA(800x480); 16 channels Logic Analyzer,500MSa/s sample rate; Power Trigger mode: edge/pulse width/line selectable video/slop/overtime etc.


16 channels logic analyzer + 2 channels oscilloscope + external trigger.
Big and clear display (7.0-inch color LCD, high revolution 800 x 480), clear lifelike waveform display.
1GSa/s real time sampling rate.
USB host, support flash memory card storage and USB interface system upgrade.
Ultrathin design, handy volume, easily portable. VGA Optional

Oscilloscope Function

100MHz Bandwidth.
Each channel record length up to 1M.
Real time sampling rate up to 1GSa/s.
Powerful trigger function.
32 kinds of automatic measurement function.

Logic Analyzer Function

16 channels divided into 2 groups which is able to setup threshold level individually.
Real time sampling rate up to 500MSa/s.
Powerful trigger function: edge, duration, pulse width, code-type, queen, repeat.

2. Specification

Model MSO5062D
Bandwidth 60MHz
Channel 2
Real-Time Sample 1GSa/s
Equivalent Sample 25GSa/s
Memory Depth 1M
Rise Time 5.8ns
Time Base Accuracy ±50ppm
Time Base Range 8ns/div-40s/div
Input Impendance  1MΩ
VOLTS/DIV Range 2mV/div~5V/div
A/D Converter 8 bit
Position Range ±50V(5V/div), ±40V(2V/div~500mV/div),
DC Gain Accuracy ±3% for Normal or Average acquisition mode, 5V/div to 10mV/div;
±4% for Normal or Average acquisition mode, 5mV/div to 2mV/div
Bandwidth Limit 20MHz
Trigger Types Edge, Video, Pulse, Slope, Over time, Alternative,Code-type, Duration, Queue, Repeat
Trigger Source CH1, CH2, EXT, EXT/5, AC Line
Math +,-,x,÷,FFT
Cursor Measurement Voltage difference between cursors: △V;
Time difference between cursors: △T;
Reciprocal of △T in Hertz (1/ΔT);
Auto Measuerment Frequency, Period, Mean, Pk-Pk, Cycli RMS, Minimum, Maximum, Rise time, Fall Time, +Pulse Width, -Pulse Width, Delay1-2Rise, Delay1-2Fall, +Duty, -Duty, Vbase, Vtop, Vmid, Vamp, Overshoot, Preshoot, Preiod Mean, Preiod RMS, FOVShoot, RPREShoot, BWIDTH、FRF, FFR, LRR, LRF, LFR, LFF
Display 7"TFT 16K Color LCD, 800*480 dots
Size 313mm x 108mm x 142mm
Weight 2.08KG
Standard Probe PP80x2

3. Operating system

Windows 7, Windows NT, Windows 2000, Windows XP, VISTA.

4.Function Picture:

5. Standard Accessories:
