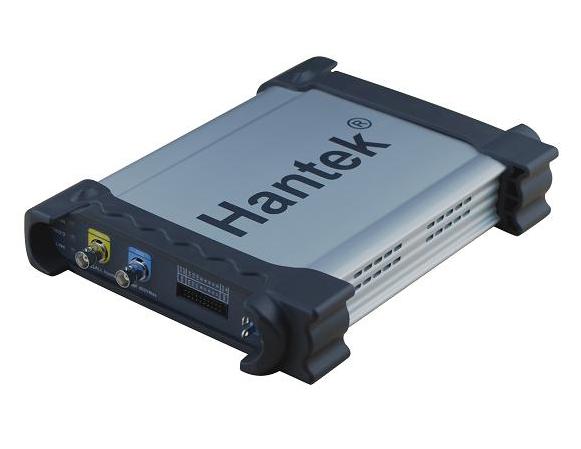

DSO3062L
60MHz bandwidth; 2 channels oscilloscope; With 16 channels logic analyzer; USB 2.0 interface, LAN optional.
Feature:
Four-in-one PC Based Laboratories: Oscilloscope/Logic Analyzer/Spectrum Analysis/Frequency Counter
2 Channel and EXT trigger, 60MHz Bandwidth.
200MSa/s real-time sampling rate, 10k—16M memory depth per channel.
8--36V Wide range of input voltage, suitable for vehicle power test.
USB 2.0 interface, LAN optional.
More than 20 kinds of automatic measurement function, PASS/FAIL Check function,
is suitable for engineering application.
Excellent industrial design, similar interface with bench oscilloscope,
easy to use.
Software support: Windows NT, Windows 2000, Windows XP, VISTA, Win 7, Win
8.
Supply DEMO code (VC, VB, LABVIEW) and technical support.
Hardware Specifications
Model | DSO3062AL |
Oscilloscope Mode | |
Vertical System | |
Analog Channels | 2 |
Bandwidth | 60MHz(-3dB) |
Rise Time | 5.8ns |
Input Impedance | Resistance: 1MΩ; Capacitance: 25 pF |
Input Sensitivity | 10mV/div to 5V/div |
Input Coupling | AC/DC/GND |
Vertical Resolution | 8 bits |
Memory Depth | 10K-16M/CH |
Maximum Input | 400V (DC+AC Peak) |
Horizontal System | |
Real-Time Sampling Rate | 200MS/s |
Time BaseRange | 5ns/div to 1000s/div(1-2-5 sequences) |
Time Base Precision | ±50ppm |
Trigger System | |
Source | CH1, CH2, EXT |
Mode | Edge,Pulse,Viedo,Alternative |
X-Y MODE | |
X-Axis Input | CH1 |
Y-Axis Input | CH2 |
Phrase Shift | Max.3 degree |
Cursors and Measurement | |
Voltage Measurement | Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase,Vavg, Vrms, Vcrms, Preshoot, Overshoot |
Time Measurement | Frequency,Period, Rise Time, Fall Time, PositiveWidth, Negative Width, Duty Cycle |
Cursors Measurement | Horizontal ,Vertical, Track, Auto Measure Modes |
Waveform Signal Process | +,- , x,÷, FFT, Invert |
AUTO SET | Yes |
Voltage Range |
10mV to 5V/div @ x 1 probe; 100mV to 50V/div @ x 10 probe; 1V to 500V/div @ x 100 probe; 10V to 5000V/div @ x 1000 probe; 100V to 50000V/div @ x 10000 probe; 200mV to 100V/div @ 20:1 |
Current Range | CC65(20A),CC65(60A),CC650,CC1100 |
FFT | Rectangular, Hanning,Hamming, Blackman Window |
Math | Adition, subtraction, multiplication, division |
Logic Analyzer Mode | |
High input impendence | 200K(C=10p) |
Input Voltage range | -60V~60V |
Logic threshold range | -6~6V |
Max Sample Rate | 100MHz |
Bandwidth | 10MHz |
Compatible input | TTL, LVTTL, CMOS, LVCMOS,ECL, PECL, EIA |
Storage depth | 10K-16M/CH |
General Features | |
Interface | USB 2.0(LAN Optional) |
Power Source | 8-36V wide range of input voltage, suitable for vehicle power test. |
Volume | 255 x 190 x 45 (mm) |
Weight | 1kg |
Optional Accessory
LAN (HT312)

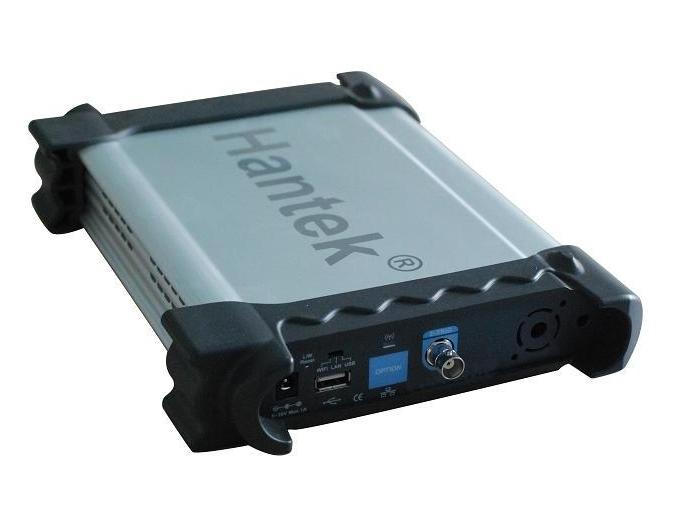

Other Pictures
