DSO3062AL
60MHz bandwidth; 2 channels oscilloscope;
Models with arb. waveform generator and logic analyzer;
USB 2.0 interface, LAN optional.
Features
Five-in-one PC Based Laboratories: Oscilloscope/Arbitrary Waveform Generator/Logic Analyzer/Spectrum Analysis/Frequency Counter
Oscilloscope:
2 Channel and EXT trigger, 60MHz Bandwidth.
200MSa/s real-time sampling rate, 10k—16M memory depth per channel.
Arbitrary Waveform Generator:
25MHz arbitrary waveform output, (sine wave can deliver up to 75MHz) 200MSa/s DDS, 12bits of vertical resolution.
Frequency Counter, FFT spectrum analysis.
8--36V Wide range of input voltage, suitable for vehicle power test.
USB 2.0 interface, LAN optional.
More than 20 kinds of automatic measurement function, PASS/FAIL Check function, is suitable for engineering application.
Excellent industrial design, similar interface with bench oscilloscope, easy to use.
Software support: Windows NT, Windows 2000, Windows XP, VISTA, Win 7, Win 8.
Supply DEMO code (VC, VB, LABVIEW) and technical support.
Hardware Specifications:
| Model | DSO3062AL |
| Oscilloscope Mode | |
| Vertical System | |
| Analog Channels | 2 |
| Bandwidth | 60MHz(-3dB) |
| Rise Time | 5.8ns |
| Input Impedance | Resistance: 1MΩ; Capacitance: 25 pF |
| Input Sensitivity | 10mV/div to 5V/div |
| Input Coupling | AC/DC/GND |
| Vertical Resolution | 8 bits |
| Memory Depth | 10K-16M/CH |
| Maximum Input | 400V (DC+AC Peak) |
| Horizontal System | |
| Real-Time Sampling Rate | 200MS/s |
| Time BaseRange | 5ns/div to 1000s/div(1-2-5 sequences) |
| Time Base Precision | ±50ppm |
| Trigger System | |
| Source | CH1, CH2, D0-D15, EXT |
| Mode | Edge,Pulse,Viedo,Alternative |
| X-Y MODE | |
| X-Axis Input | CH1 |
| Y-Axis Input | CH2 |
| Phrase Shift | Max.3 degree |
| Cursors and Measurement | |
| Voltage Measurement | Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase,Vavg, Vrms, Vcrms, Preshoot, Overshoot |
| Time Measurement | Frequency,Period, Rise Time, Fall Time, PositiveWidth, Negative Width, Duty Cycle |
| Cursors Measurement | Horizontal ,Vertical, Track, Auto Measure Modes |
| Waveform Signal Process | +,- , x,÷, FFT, Invert |
| AUTO SET | Yes |
| Voltage Range |
10mV to 5V/div @ x 1 probe; 100mV to 50V/div @ x 10 probe; 1V to 500V/div @ x 100 probe; 10V to 5000V/div @ x 1000 probe; 100V to 50000V/div @ x 10000 probe; 200mV to 100V/div @ 20:1 |
| Current Range | CC65(20A),CC65(60A),CC650,CC1100 |
| FFT | Rectangular, Hanning,Hamming, Blackman Window |
| Math | Adition, subtraction, multiplication, division |
| Arb. Wavefrom Generator Mode | |
| Waveform Frequency | DC~25MHz |
| DAC | 2K~200MHz adjustable |
| Frequency Resolution | 0.10% |
| Channel | 1CH waveform output |
| Waveform Depth | 4KSa |
| Vertical Resolution | 12 bit |
| Frequency Stability | <30ppm |
| Wave Amplitude | ±3.5V Max. |
| Output Impedance | 50 Ω |
| Output Current | 50mA Ipeak=50mA |
| System BW | 25M |
| Harmonic Distortion | -50dBc(1KHz), -40dBc(10KHz) |
| Logic Analyzer Mode | |
| High input impendence | 200K(C=10p) |
| Input Voltage range | -60V~60V |
| Logic threshold range | -6~6V |
| Max Sample Rate | 100MHz |
| Bandwidth | 10MHz |
| Compatible input | TTL, LVTTL, CMOS, LVCMOS,ECL, PECL, EIA |
| Storage depth | 10K-16M/CH |
| General Features | |
| Interface | USB 2.0(LAN Optional) |
| Power Source | 8-36V wide range of input voltage, suitable for vehicle power test. |
| Volume | 255 x 190 x 45 (mm) |
| Weight | 1kg |

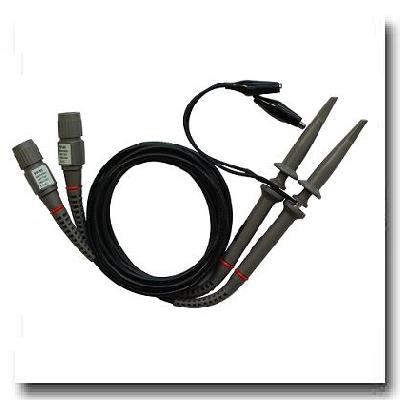

Standard Accessories
Optional Accessory
LAN (HT312)

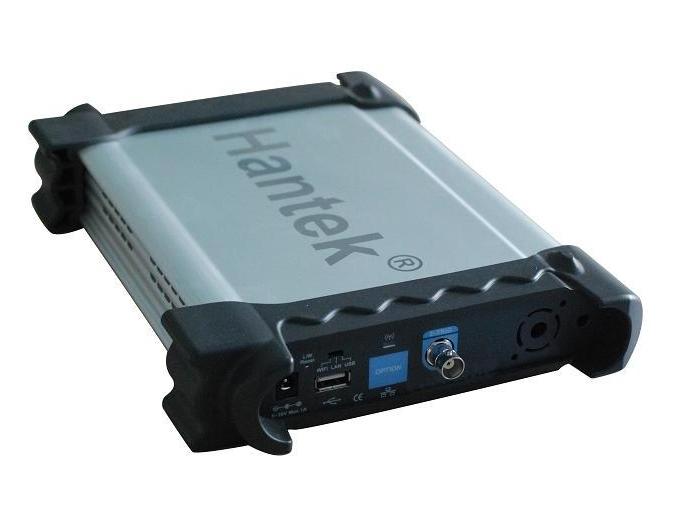

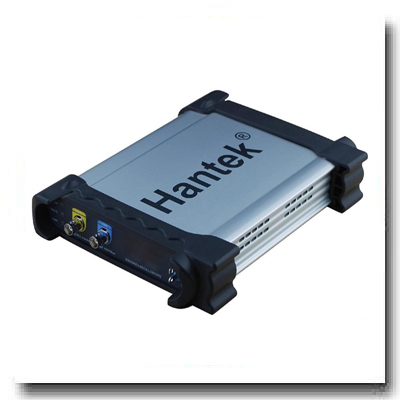

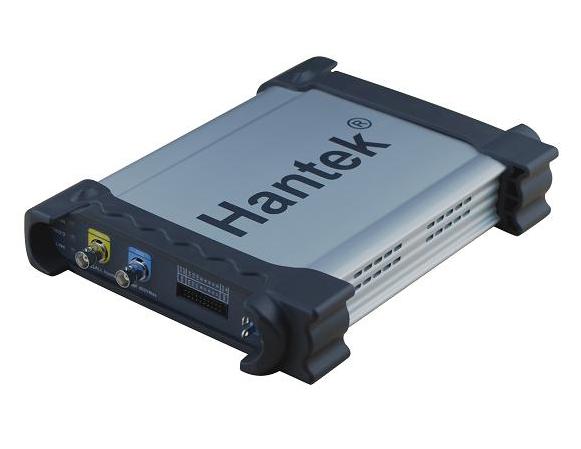

Other Pictures
