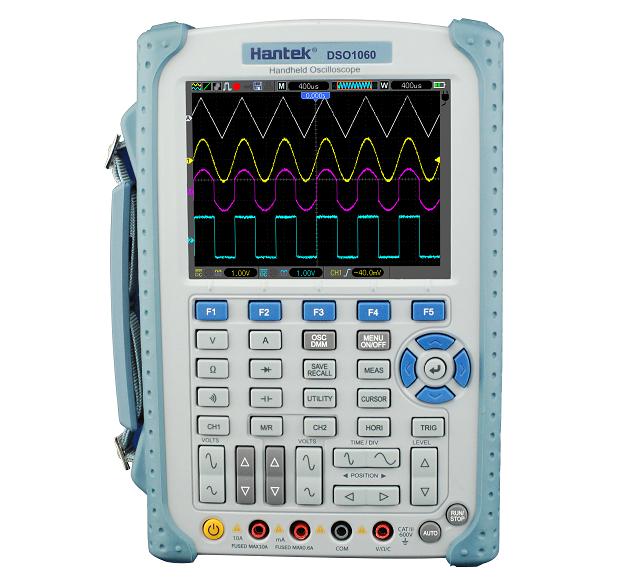

60MHz oscilloscope with 6,000 multimeter;
Battery power operation (installed) industrial design;
Large 5.7 inch TFT color LCD display, LED backlight, display clearly.


Excellent industrial design. Direct key for each channel, time base, trigger and DMM, easy to operate.

Large 5.7 inch TFT color LCD display, LED backlight, display clearly.
USB host/device 2.0 full-speed interface, support removeable disk, RS-232/LAN option, easy to control by PC or long-distance.

High bandwidth 60MHz-200MHz oscilloscope, and 6000 COUNTS high precision DMM.

High refresh rate. High real-time sample rate 150MSa/s-2GSa/s. 50GSa/s equivalent-time sample rate.

FFT, +, -, x, ÷, X-Y, 22 types of auto measurements, PASS/FAIL check, easy to use on production line.

Multiform trigger mode, 2 separate time base in ALT trigger mode, easy to observe 2 signals with different frequency.

1000 waveforms save and record.

Battery power operation (installed) and industrial design.

Save waveform in the following: jpg/bmp graphic file, MS excel/word file.

Dimensions (mm): 240(L)x165(W)x50(H), be carried easily.

Labview\VB\VC Second Design instance.

2.Hardware Specifications

Model DSO1060
Bandwidth 60MHz
Channel 2
Real-Sample Rate 500MSa/s
Equivalent Sample Rate 50GSa/s
Record Length 32K
Rish time 5.8ns
Timebase Accuracy ±50ppm
Time Base Range 5ns/div-1000s/div
Input Impandance  1MΩ ΙΙ 15pF
VOLTS/DIV Range 10mV/div5V/div
A/D Converter 8bit
Position Range ±50V(5V/div), ±40V(2V/div500mV/div),
DC Gain Accuracy ±3% for Normal or Average acquisition mode, 5V/div to 10mV/div;
±4% for Normal or Average acquisition mode, 5mV/div to 2mV/div
Bandwidth Limit 20MHz
Trigger Types Edge, Video, Pulse, Slope, Over time, Alternative
Trigger Source CH1, CH2,
Math +,-,x,÷,FFT, Invert
Cursor Measurement Voltage difference between cursors: V;
Time difference between cursors:
Reciprocal of
T in Hertz (1/ΔT);
Auto Measuerment Frequency, Period, Mean, Pk-Pk, Cycli RMS, Minimum, Maximum, Rise time, Fall Time, +Pulse Width, -Pulse Width, Delay1-2Rise, Delay1-2Fall, +Duty, -Duty, Vbase, Vtop, Vmid, Vamp, Overshoot, Preshoot, Preiod Mean, Preiod RMS, FOVShoot, RPREShoot, BWIDTH, FRF
DMM Max. Resolution 6,000 Counts
Testing Modes Voltage, Current, Resistance, Capacitance, Diode & Continuity
Max. Input Voltage AC: 600V, DC: 800V
Max. Input Current AC:10A , DC: 10A
Max. Input Impandance 10MΩ
Display 5.7"LED Display, 320*240 dots
Size 245mm x 163mm x 52mm
Weight 1.3KG(Without Package)
Standard Probe PP80x2

3.Feature Pictures

If connect to computer, it can be used as a virtual oscilloscope.

6000 COUNTS Digital Multimeter

The cursor function

22 kinds of waveform measurements

ALT MAG, easy to search for signal

X-Y mode

FFT Provides spectrum analysis function

 ALT trigger mode, dual time base, easy to observe two signals of different frequency

Test signal more than 100MHz by ETS mode

Document management, convenient file storage and management
