Current Location:Home > Product Details>Hantek 365DProduct Details

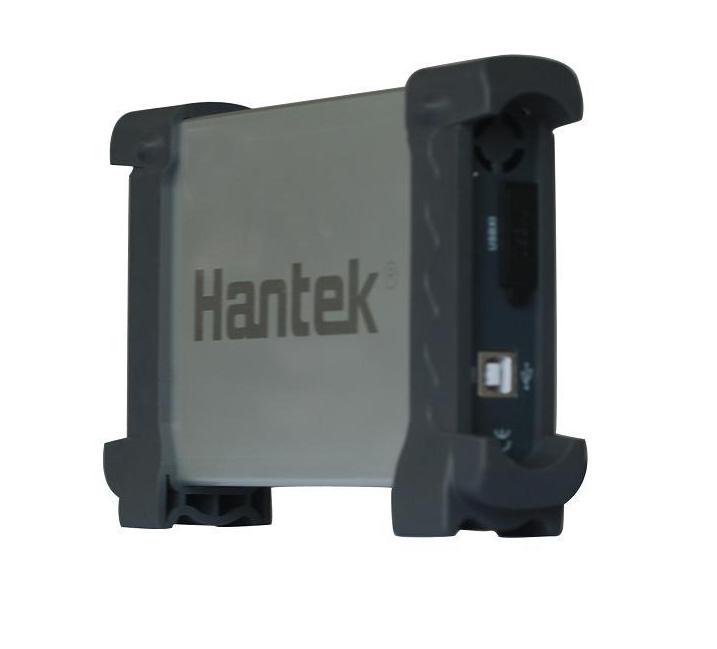

Hantek 365D

Safe electrical isolation; Long time record voltage, current, resistance and capacitance etc. in real time, and create trend curves; True RMS; Plug & play; Support Android system mobile.

OneDrive Download
  • Long time record voltage, current, resistance, capacitance and on-off etc. in real time, and create trend curves.
  • Safe electrical isolation, and true RMS measurement.
  • Plug play USB interface, build-in lithium battery, support bluetooth wireless transmission.

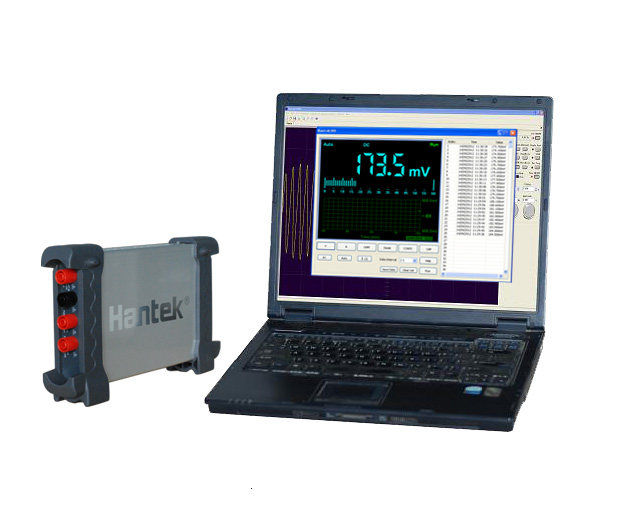

  • Simple, handy and flexible control software.
  • Support Android system mobile phone and tablet computer.
  • Software support: Android(mobile), Windows 2000, Windows 7, Windows XP, Win8.
Function  Range Accuracy Resolution
DC Voltage 60.00mV ±1% ±1 digit 10uV
600.00mV 100uV
6.00V 1mV
60.00V 10mV
60.00V 100mV
800V 1V
AC Voltage 60.00mV ±1%±3 digit 10uV
600.00mV 100uV
6.00V 1mV
60.00V 10mV
600.0V 100mV
DC Current 60.00mA ±1.5%±1 digit 10uA
600.00mA ±1%±1 digit 100uA
6.000A ±1.5%±3 digit 1mA
10.00A 10mA
AC Current 60.00mA ±1.5%±1 digit 10uA
600.00mA ±1%±1 digit 100uA
6.000A ±1.5%±3 digit 1mA
10.00A 10mA
Resistance  600 ±1%±3 digit 0.1Ω
6.000 K ±1%±1 digit
60.00 K 10Ω
600.0 K 100Ω
6.000 M 1KΩ
60.00 M ±1.5%±3 digit 10KΩ
Capacitance 40.00nF ±1%±1 digit 10pF
400.00nF 100pF
4.000uF 1nF
40.00uF 10pF
400.0uF 100pF
Attention: The smallest capacitance value that can be measured in 5nF
Diode 0V~2.0V




NumberAttachments TitleOperating
1Hantek365 SoftwareDownload
2Hantek365 DriverDownload
3Hantek365 ManualDownload
