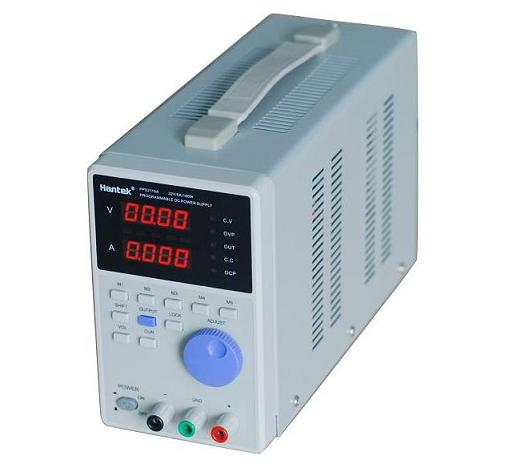

PPS2116A

Integrated analog and digital control technology in a new general-purpose power supply. Analog power high stability, low ripple noise characteristics of digital circuits and variety of control functions.

OneDrive Download

This power supply is integrated analog and digital control technology in a new general-purpose power supply. It has both analog power high stability, low ripple noise characteristics of digital circuits and easy implementation and variety of control functions, for your work and production provides a wide range of convenient, simple, and easy to use.

*Low ripple, low excursion

*High resolution, 10mV, 1mA

*With inner auto-serial or parallel function

*Convenient software calibration

*High-stability, low-drift.

*OVP, OCP and OTP to protect power supply.

*The intelligence temperature-control fan noise is low




Model PPS2116A
Voltage Output 0-32.00V
Current Output 0--5.000A
Source Effect CV≤0.01%+3mV(mA)
Load Effect CV0.01%+3mV(I3A); CC0.2%+3mA(I3A);
CV
0.02%+5mV(I>3A);  CC0.2%+5mA(I>3A)
Ripple and Noise CVl.0mVrms(I3A); CC3mArms(I3A);
CV
2.0mVrms(I>3A); CC6mArms(I>3A)
Protection Type Overcurrent protection (OCP) Overvoltage protection(OVP)
Read accuracy Voltage:±(read values 0.5% + 2bit);
Current:
±(read values 1% + 2bit)
Run Environment Temperature: 0-- + 40, Humidity80%
Power 220V10%AC 50Hz/60Hz; 110V10%AC 50Hz/60Hz
Dimension 350mm(l)×150mm(w)×210mm(h), 5.5kg

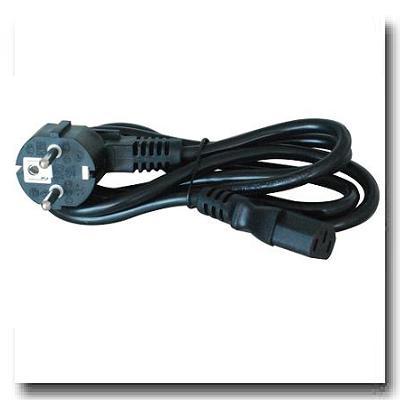

Accessories Output line: 3pcs, product instructions: 1pc, power cord: 1pc

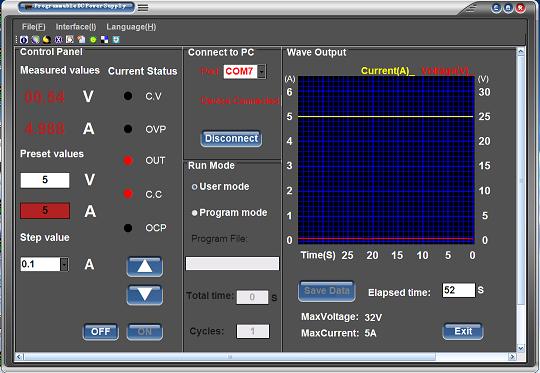

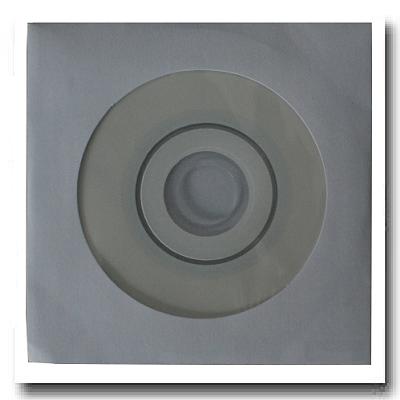

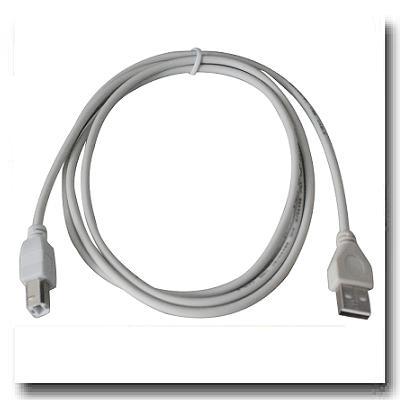

Matching USB interface, Communication software








NumberAttachments TitleOperating
1PPS2116A SoftwareDownload
2PPS2116A DriverDownload
3PPS2116A SDKDownload
4PPS2116A ManualDownload
