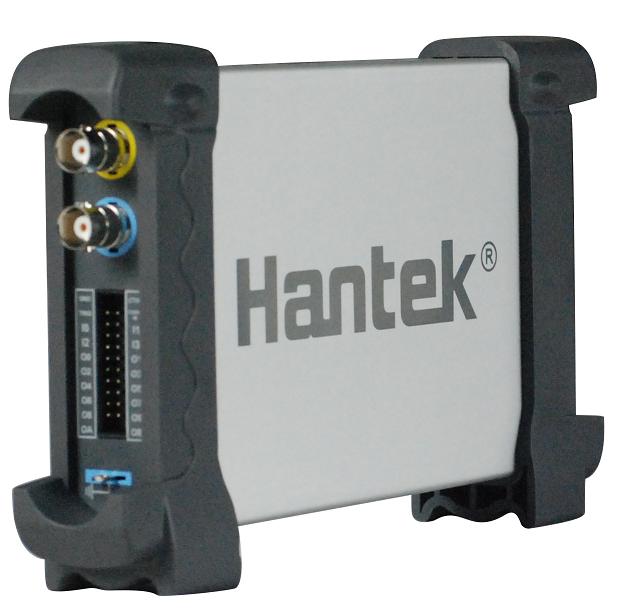

Hantek1025G

25MHz Arb. Wave, 200MSa/s DDS;
Standard USBXITM interface, easily inserts into USBXITM housing to make up a combination instrument.

OneDrive Download

Cost-effectiveness; PC USB Function/Arbitrary Waveform Generator.
Excellent industrial design-the same anodised aluminium casing as iPad, which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wearability.

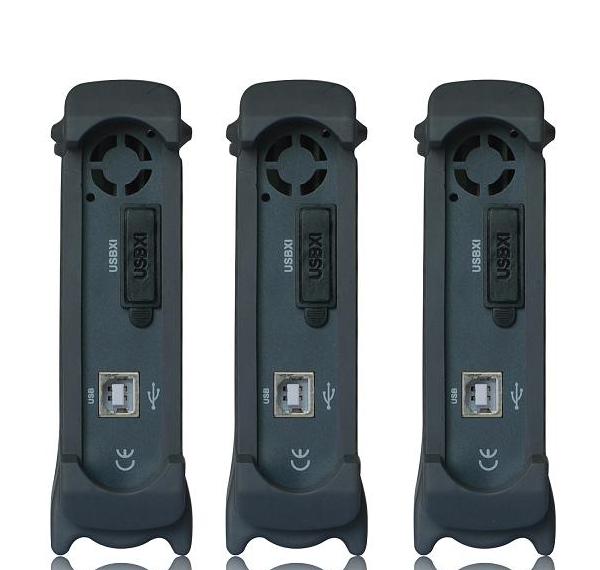

Plug & Play USB interface, no external power source required; Similar operation interface to benchtop waveform generators, easy to use.
It can be used disengaging the computer. Simulation of sensors and Real Word Signals. It will produce the needed arbitrary waveform signals when power on.
200MSa/s sample rate, 12 bits of vertical resolution; 25Mz arbitrary waveform output. (Sine wave up to 75 MHz).

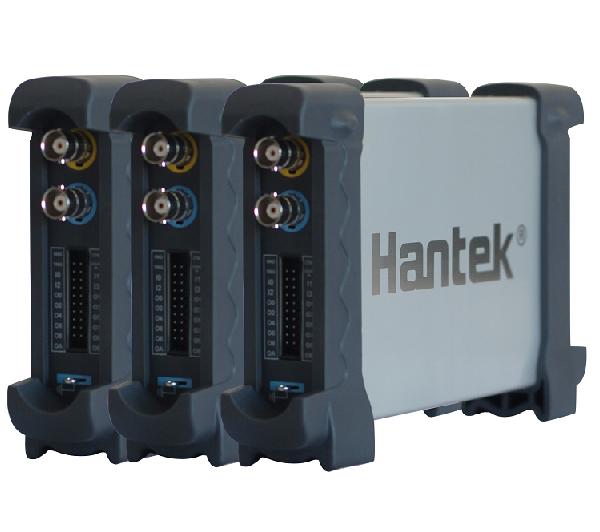

One computer can be linked with several HANTEK1025G to expand Multi-channels.
50 MHz Frequency Counter.
Programmable Pattern Generator.
Standard USBXI^TM interface, easyly inserts into USBXI^TM housing to make up a combination instrument.
Support System: Win 7, Windows NT, Windows 2000, Windows XP

Function Picture

Arbitrary Waveform Output
Wave frequency	DC~25MHz
DAC clock	2K~200MHz adjustable
Channels	1CH waveform output
Waveform Length	4KSa
Vertical Resolution	12 bit
Frequency stabilization	<30ppm
Amplitude	±3.5V Max.
Output impedance	50 Ω
Output current	50mA Ipeak=50mA
System Bandwidth	25M
Wave distortion	-50dBc(1KHz), -40dBc(10KHz)
Frequency Counter
Frequency area	DC~50MHz
Input Amplitude	400mVpp~18Vpp
Coupling	DC
Frequency precision	±Time Base Error ±1 Count
Input impedance	> 100KΩ
Pattern Generator
Digit	12 Bits Pattern Generator and 6Bit digital In
Type	LVCMOS
Working Environment
Temperature	0~70 centigrade
Humidity	0~95%
Weight	0.3Kg

Model	Channel	Resolution	Sample Rate	Other

HDG2000B Series	16CH Digital+ 2 CH Analog+ 2.7G Frequency Counter	16 Bit	250MSa/s	64M Memory Depth; 16bit Vertical Resolution; 16CH Digital output; 2.7G Frenquecy Counter; Plenty of interfaces: USB Host, USB Device, LAN Optional
HDG2000C Series	16CH Digital+ 2 CH Analog+ 2.7G Frequency Counter Isoluted Channel	16 Bit	250MSa/s	64M Memory Depth; 16bit Vertical Resolution; 16CH Digital output; 2.7G Frenquecy Counter; Plenty of interfaces: USB Host, USB Device, LAN Optional
HDG1000A Series	2CH (AFG)	8/10Bit	100M/180MSa/s	3.5-inch TFT display English/Chinese menu RS232 & USB interface FM、AM、FSK、ASK、 PSK Modulation
Hantek1025G	1CH(AWG)+12Bit Pattern Generator	12Bit	200MSa/s	12 bits of vertical resolution 25MHz Arb. waveform output. (Sine wave up to 75MHz) Standard USBXITM interface, easily inserts into USBXITM One computer can be linked with
DDS3X25	1CH(AWG)+12Bit Pattern Generator	12Bit	200MSa/s	256K wave length, One computer can be linked with several, 12 bits vertical resolution, USB interface plug and play ,
DDS3005	1CH(AWG)+1CH2.7GHz Frequency Counter	14Bit	200MSa/s	4K Record Length 14bits D/A resolution USB interface plug and play easy to Automatic calibration One computer can be linked with several
