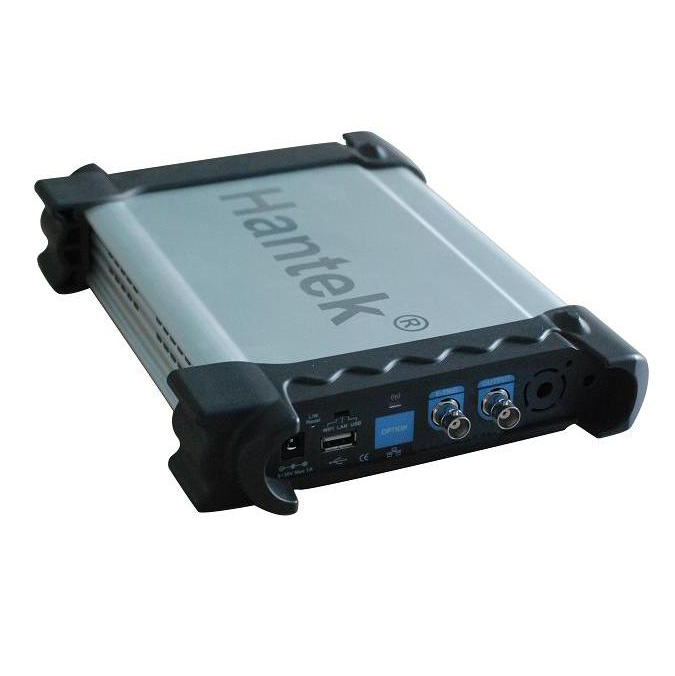

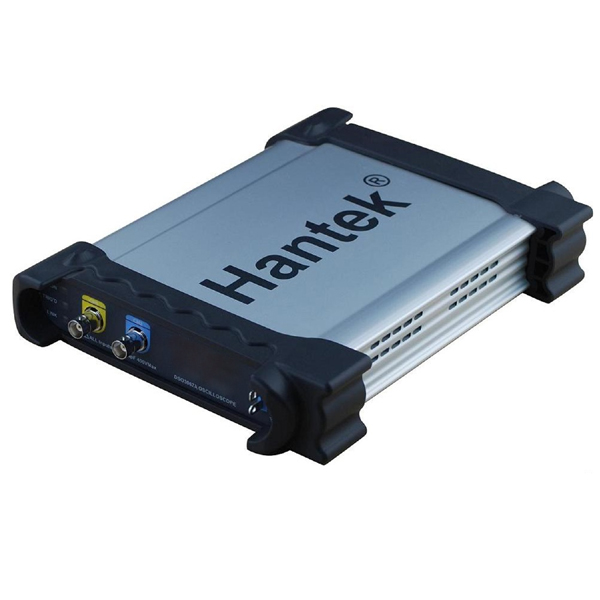

Model	DSO3062A
Oscilloscope Mode
Vertical System
Analog Channels	2
Bandwidth	60MHz(-3dB)
Rise Time	5.8ns
Input Impedance	Resistance: 1MΩ; Capacitance: 25 pF
Input Sensitivity	10mV/div to 5V/div
Input Coupling	AC/DC/GND
Vertical Resolution	8 bits
Memory Depth	10K-16M/CH
Maximum Input	400V (DC+AC Peak)
Horizontal System
Real-Time Sampling Rate	200MS/s
Time BaseRange	5ns/div to 1000s/div(1-2-5 sequences)
Time Base Precision	±50ppm
Trigger System
Source	CH1, CH2, EXT
Mode	Edge,Pulse,Viedo,Alternative
X-Y MODE
X-Axis Input	CH1
Y-Axis Input	CH2
Phrase Shift	Max.3 degree
Cursors and Measurement
Voltage Measurement	Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase,Vavg, Vrms, Vcrms, Preshoot, Overshoot
Time Measurement	Frequency,Period, Rise Time, Fall Time, PositiveWidth, Negative Width, Duty Cycle
Cursors Measurement	Horizontal ,Vertical, Track, Auto Measure Modes
Waveform Signal Process	+,- , x,÷, FFT, Invert
AUTO SET	Yes
Voltage Range	10mV to 5V/div @ x 1 probe; 100mV to 50V/div @ x 10 probe; 1V to 500V/div @ x 100 probe; 10V to 5000V/div @ x 1000 probe; 100V to 50000V/div @ x 10000 probe; 200mV to 100V/div @ 20:1
Current Range	CC65(20A),CC65(60A),CC650,CC1100
FFT	Rectangular, Hanning,Hamming, Blackman Window
Math	Adition, subtraction, multiplication, division
Arbitrary Waveform Generator Mode
Waveform Frequency	DC~25MHz
DAC	2K~200MHz adjustable
Frequency Resolution	0.10%
Channel	1CH waveform output
Waveform Depth	4KSa
Vertical Resolution	12 bit
Frequency Stability	<30ppm
Wave Amplitude	±3.5V Max.
Output Impedance	50 Ω
Output Current	50mA Ipeak=50mA
System BW	25M
Harmonic Distortion	-50dBc(1KHz), -40dBc(10KHz)
General Features
Interface	USB 2.0(LAN, WIFI Optional)
Power Source	8-36V wide range of input voltage, suitable for vehicle power test.
Volume	255 x 190 x 45 (mm)
Weight	1kg

Model	Unit	Use	Specification	Other

AC/DC Current Clamp CC-65	pc	It is a transducer which allows your multimeter to measure current data and enable your oscilloscope to measure the current waveforms.	AC/DC Current Clamp, 20kHz Bandwidth, 1mV/10m, 65A.	Two types connectors. Type A: Male BNC connector; Type B: Banana Connectors.
AC/DC Current Clamp CC-650	pc	It is a transducer which allows your multimeter to measure current data and enable your oscilloscope to measure the current waveforms.	AC/DC Current Clamp, 20kHz Bandwidth, 1mV/10m, 650A.	Two types connectors. Type A: Male BNC connector; Type B: Banana Connectors.
AC/DC Current Clamp CC-1100	pc	It is a transducer which allows your multimeter to measure current data and enable your oscilloscope to measure the current waveforms.	AC/DC Current Clamp, 20kHz Bandwidth, 1mV/10m	Two types connectors. Type A: Male BNC connector; Type B: Banana Connectors.
Probe (PP80, PP90, PP150, PP200)	pc	Integral injection molding makes the usage more flexible and the oscilloscope able to adapt more testing situations.	Attenuation ratio: 1× and 10× optional. Input resistance: 1MΩ: 10MΩ System bandwidth: x1:DC-4MHz-80MHz; x10: DC-60MHz-200MHz.	Universal version.
High-Voltage x100 Probe (T3100)	pc	The T3100 probe is designed as a strong, flexible and reliable part for the oscilloscope according to the human body function.	Attenuation: 100:1; Input Resistance: 100M ohm; Bandwidth: DC-100MHz; Input Voltage:2000VDC+ACpk	Universal version
20:1 Attenuator (HT201)	pc	The HT201 has been designed to allow fuel injector and primary ignition waveforms to be measured using Hantek oscilloscopes.	Specification: Attenuation: 20:1 Bandwidth: 10MHz Input Res: 1.053M	For vehicle testing.
Auto Ignition Probe (HT25)	pc	Auto ignition probe is a kind of inductive capacitance sensor, it must match with an oscilloscope.	Lead length 2.5 meters, the decay of up to 10,000:1.	For vehicle testing.
Large Dolphin/Gator Clips (HT18A)	pair	The dolphin/gator clips are fully insulated with a 4 mm socket in the handle, offering an easy connection to the HT30A auto test cable.	Length: 85 mm, Height: 38 mm Depth: 16.5 mm Clamping limit: 30 mm Contents:1pc X Red Clip 1pc X Black Clip	Be able to use with HT30A.
Multimeter Probe (HT19)	pair	The multimeter probes offer a quick and easy solution, where a permanent connection is not required.	Length: 131 mm Diameter: 10 mm Contents:1pc X Red Probe, 1pc X Black Probe	Be able to use with HT30A and HT307.
Auto Test Leads (HT30A)	pc	It's a special line for assisting auto measurement instruments to test various types of signals.	Test lead of a male BNC connector to (2) 4mm connectors. 4mm connectors are coded in two colors, black and red. Lead length 30 meter.	For vehicle testing.
Breakout Leads(HT301)	pc	This breakout lead is easy to take voltage readings from numerous sensors in vehicle engine compartment.	Connect the breakout lead plugs into the existing wire loom, and insert the two 4mm banana plugs into the scope using test lead HT30A, the output signal can be taken.	For vehicle testing.
6-Way Breakout Leads (HT306)	set	The lead is easy to access the existing automotive wiring harness interface, convenient to read all kinds of sensor signal.	The lead with 4 kinds of joint size: 0.6mm, 1.5mm, 2.3mm and 2.8 mm.	For vehicle testing.
Acupuncture Probe Set (HT307)	set	This acupuncture probe is a back pinning, piercing and repairable probe.	Contents: 5pcs complete acupuncture probes, 2pcs screws, 20pcs replacement needles.	With replacement needles.
COP Extension Cord (HT308)	set	Simple accessory that allow you to take accurate secondary ignition measurements on COP ignition systems.	Designed to aid diagnostics on secondary ignition circuits by allowing an HT measurement to be made when there are no, or limited access, to any spark plug leads.	For vehicle testing.
Auto Power Adapter (HT310)	pc	Power your oscilloscopes and other electronic devices through your vehicle's DC outlet with this power adapter.	Input DC: 12-24VDC; Output: 12V 1500mA Cord Length: 1.45m.	Optional car power adapter and cord for oscilloscope.
BNC to 4 mm Adapter (HT311)	pc	The BNC to 4mm adapter connects two 4mm banana plugs to a BNC socket.	BNC Impedance: 50Ω Voltage: 500V, Current: 3A Max. Resistance: <0.8mΩ	Signal is connected to red terminal
LAN PCB (HT312)	pc	This board is factory installed on oscilloscopes as an optional interface and should require no futher connections to be made to it.	The LAN Interface PCB uses a High Impedance Transceiver (HIT) for signal transceiving in order to utilize a bus topology on the LAN.	Optional interface for oscilloscope.
Mini Test Hook( HT321)	set	Set of 18 pcs mini test hooks for logic analyzers and other measuring instruments.	Hook connects to 1.65mm dia wire or smaller.	Apply to logic analyzer.
BNC to BNC Cable (HT322)	pc	It's an necessary interconnection cable for general function and signal generator applications.	1m BNC male to BNC male cable; Frequency range:DC~1GHz; Nominal impedance: 50Ω; Coaxial cable.	Male BNC connectors on both ends.
Multimeter Probe (HT325)	pair	Meter probe with standard plug (4mm), suitable for universal.	CATIII 1000V, double insulation; Max. rated current: 16A ; Content: 1pc x red probe, 1pc x black probe	Adapt for all Hantek handheld oscilloscope.
Multimeter Banana Socket (HT326)	set	11.4mm multimeter banana plug and socket, terminal test hole and connector.	Set screw, high quality, 3 types and many color available (red, black, green, blue).	Accessory for multimeter.
Multimeter Socket (HT323)	pair	The external multimeter socket offer a quick and easy solution, where a permanent connection is not required.	Size: 11.4mm Contents: 1pc x red socket 1pc x black socket	Accessory for multimeter.

DSO3062A
