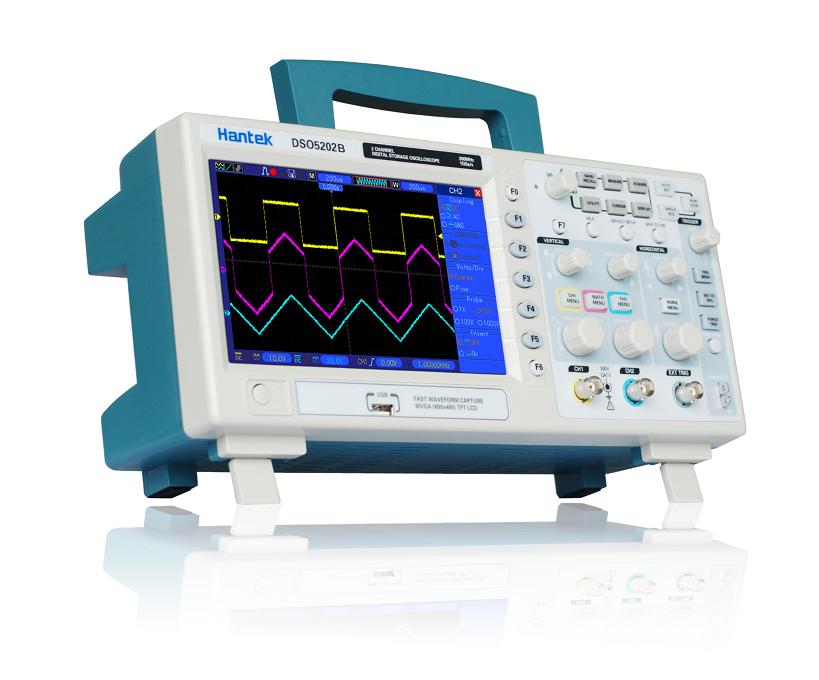

DSO5202B

Bandwidth: 200MHz;
1GSa/s real time sample rate;
Large (7.0-inch) color display, WVGA(800x480);
Record length up to 1M.

1. Features

  • 200MHz bandwidths
  • 1GSa/s Real Time sample rate
  • Large (7.0-inch) color display,WVGA(800x480)
  • Record length up to 1M
  • Trigger mode: edge/pulse width/line selectable video/slop/overtime etc.
  • USB host and device connectivity, standard
  • Multiple automatic measurements
  • Four math functions, including FFTs standard
  • VGA Optional

2. Specifications

Model DSO5202B
Bandwidth 200MHz
Channel 2
Real-Time Sample 1GSa/s
Equivalent Sample 25GSa/s
Memory Depth 1M
Rise Time 1.7ns
Time Base Accuracy ±50ppm
Time Base Range 2ns/div-40s/div
Input Impendance  1MΩ
VOLTS/DIV Range 2mV/div5V/div
A/D Converter 8 bit
Position Range ±50V(5V/div), ±40V(2V/div500mV/div),
±2V(200mV/div
50mV/div)±400mV(20mV/div2mV/div)
DC Gain Accuracy ±3% for Normal or Average acquisition mode, 5V/div to 10mV/div;
±4% for Normal or Average acquisition mode, 5mV/div to 2mV/div
Bandwidth Limit 20MHz
Trigger Types Edge, Video, Pulse, Slope, Over time, Alternative
Trigger Source CH1, CH2, EXT, EXT/5, AC Line
Math +,-,x,÷,FFT
Cursor Measurement Voltage difference between cursors: V;
Time difference between cursors:
T;
Reciprocal of
T in Hertz (1/ΔT);
Auto Measuerment Frequency, Period, Mean, Pk-Pk, Cycli RMS, Minimum, Maximum, Rise time, Fall Time, +Pulse Width, -Pulse Width, Delay1-2Rise, Delay1-2Fall, +Duty, -Duty, Vbase, Vtop, Vmid, Vamp, Overshoot, Preshoot, Preiod Mean, Preiod RMS, FOVShoot, RPREShoot, BWIDTHFRF
Display 7"TFT 16K Color LCD, 800*480 dots
Size 313mm x 108mm x 142mm
Weight 2.08KG
Standard Probe PP200
